Neural networks based approximation of an analytical function
In this notebook, we will show how to train a neural network to approximate an analytical function. The same procedure can be used to approximate any unknown function, for example using real world data.
For convenience, the neural network implementation of this package handles the conversion between NumPy arrays and PyTorch tensors, so we won’t directly manipulate any PyTorch Tensor in this notebook.
The analytical function and the network will be saved in the out-training directory.
[1]:
import os
import sys
sys.path.append(os.path.join(os.path.abspath(""), ".."))
import shutil
import numpy as np
import matplotlib.pyplot as plt
from IPython.display import Markdown as md
import torch
from torch import nn, optim
from nnbma.networks import FullyConnected
from nnbma.dataset import RegressionDataset
from nnbma.learning import learning_procedure, LearningParameters
from functions import Fexample as F
plt.rc("text", usetex=shutil.which("latex") is not None)
dpi = 150
Definition of the analytical function
In the following cell, we load and instantiate a vectorial function \(f\) implemented as a PyTorch Module. For more details on the implementation, see functions.py. You can implement your own by following the model.
The function is the following:
[2]:
md(F.latex())
[2]:
[3]:
f = F()
ranges = [
(-2.0, 2.0),
(-1.0, 1.0),
] # Range of values of all inputs of f. Can be modified but must be consistent with the imported function.
n_points = 100 # Number of points needed to plot a profile
default_values = [
1.0,
1.0,
] # Default values of all inputs of f when plotting a profile. Can be modified but must be consistent with the imported function.
At this point, consider that f is just a function that maps vectors into other vectors (but we will see in other notebooks that it is actually more than that, for example it can be derived automatically or integrated into a neural network if desired).

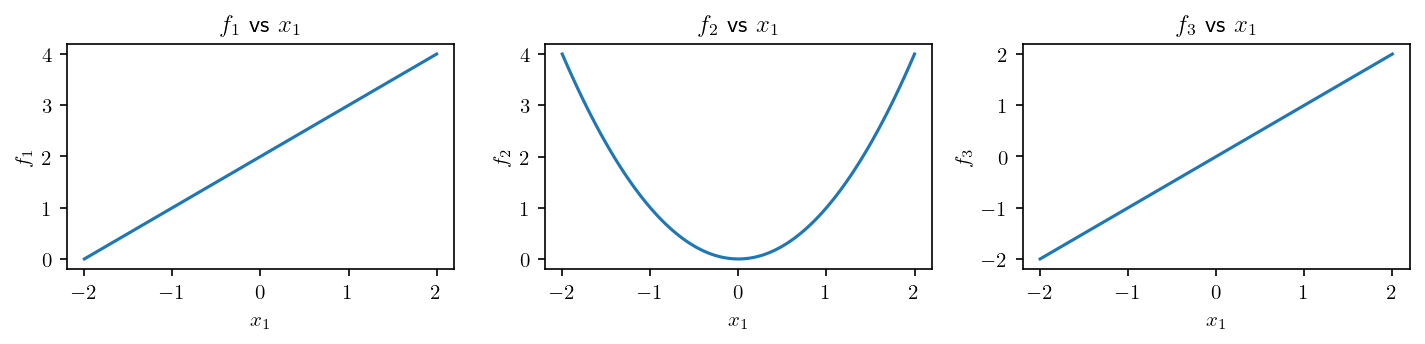

For instance, we can plot some profiles of f:
[4]:
# Index of free input, the others being restricted to their default value.
input_to_plot = 1 # Must be between 1 and f.n_inputs
x = np.array(default_values) * np.ones((n_points, f.n_inputs), dtype="float")
x[:, input_to_plot - 1] = np.linspace(*ranges[input_to_plot - 1], n_points)
print("x.shape:", x.shape)
y = f(x)
print("y.shape:", y.shape)
x.shape: (100, 2)
y.shape: (100, 3)
[5]:
plt.figure(figsize=(0.5 * f.n_outputs * 6.4, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
plt.subplot(1, f.n_outputs, j + 1)
plt.plot(x[:, input_to_plot - 1], y[:, j])
plt.xlabel(f"$x_{input_to_plot}$")
plt.ylabel(f"$f_{j+1}$")
plt.title(f"$f_{j+1}$ vs $x_{input_to_plot}$")
plt.tight_layout()
plt.show()

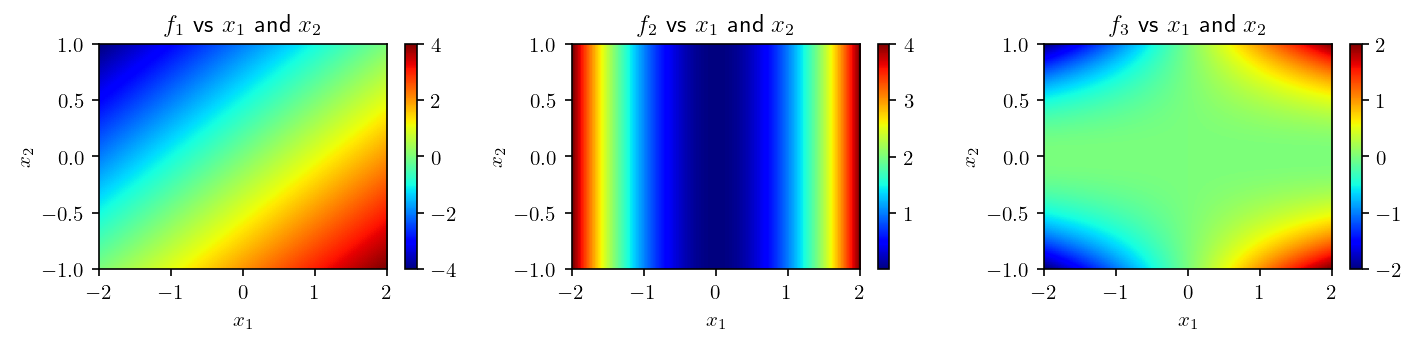

We can also draw a bivariate plot:
[6]:
# Index of free inputs, the others being restricted to their default value.
inputs_to_plot = (1, 2) # Must be between 1 and f.n_inputs
X = np.dstack(
np.meshgrid(
*[
np.linspace(*ranges[i], n_points)
if i + 1 in inputs_to_plot
else default_values[i] * np.ones(n_points)
for i in range(f.n_inputs)
]
)
)
print("X.shape:", X.shape)
Y = f(X)
print("Y.shape:", Y.shape)
X.shape: (100, 100, 2)
Y.shape: (100, 100, 3)
[7]:
plt.figure(figsize=(0.5 * f.n_outputs * 6.4, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
plt.subplot(1, f.n_outputs, j + 1)
plt.imshow(
Y[..., j],
cmap="jet",
aspect="auto",
extent=[
ranges[inputs_to_plot[0] - 1][0],
ranges[inputs_to_plot[0] - 1][1],
ranges[inputs_to_plot[1] - 1][0],
ranges[inputs_to_plot[1] - 1][1],
],
)
plt.colorbar()
plt.xlabel(f"$x_{inputs_to_plot[0]}$")
plt.ylabel(f"$x_{inputs_to_plot[1]}$")
plt.title(f"$f_{j+1}$ vs $x_{inputs_to_plot[0]}$ and $x_{inputs_to_plot[1]}$")
plt.tight_layout()
plt.show()
Creation of a neural network
We will create a fully connected neural network. To do so, we have to define, some hyperparameters: * the number of hidden layers * their respective number of neurons
[8]:
layers_sizes = [f.n_inputs, 100, 100, f.n_outputs]
activation = nn.GELU()
net_0 = FullyConnected(
layers_sizes,
activation,
)
net = net_0.copy()

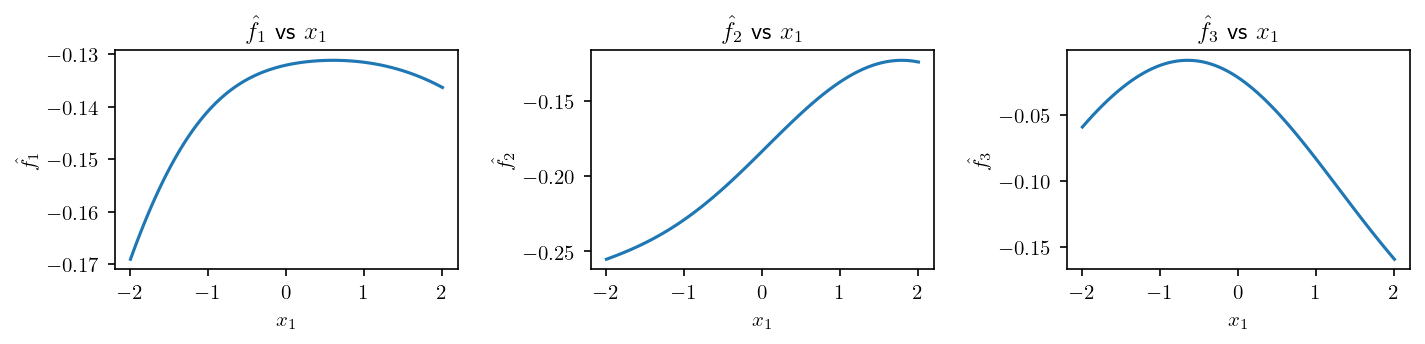

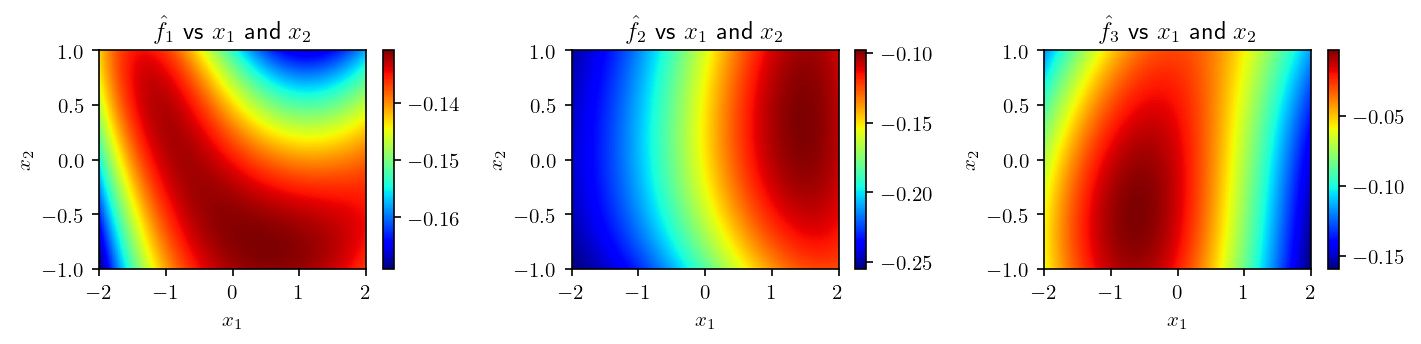

The weights are initialized randomly so, before any training, we obtain plots like that:
[9]:
y_net_0 = net_0(torch.from_numpy(x).float())
plt.figure(figsize=(0.5 * 6.4 * f.n_outputs, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
plt.subplot(1, f.n_outputs, j + 1)
plt.plot(x[:, input_to_plot - 1], y_net_0[:, j])
plt.xlabel(f"$x_{input_to_plot}$")
plt.ylabel(f"$\\hat{{f}}_{j+1}$")
plt.title(f"$\\hat{{f}}_{j+1}$ vs $x_{input_to_plot}$")
plt.tight_layout()
plt.show()
#
Y_net_0 = net_0(torch.from_numpy(X).float())
plt.figure(figsize=(0.5 * 6.4 * f.n_outputs, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
plt.subplot(1, f.n_outputs, j + 1)
plt.imshow(
Y_net_0[..., j],
cmap="jet",
aspect="auto",
extent=[
ranges[inputs_to_plot[0] - 1][0],
ranges[inputs_to_plot[0] - 1][1],
ranges[inputs_to_plot[1] - 1][0],
ranges[inputs_to_plot[1] - 1][1],
],
)
plt.colorbar()
plt.xlabel(f"$x_{inputs_to_plot[0]}$")
plt.ylabel(f"$x_{inputs_to_plot[1]}$")
plt.title(
f"$\\hat{{f}}_{j+1}$ vs $x_{inputs_to_plot[0]}$ and $x_{inputs_to_plot[1]}$"
)
plt.tight_layout()
plt.show()
Training of the network
We will train this network in order to approximate the previous function. To do so, we generate a dataset of randomly distributed points (not a grid like the one used to draw the figures).
The following cell controls the size of the whole dataset, and which fraction of it will be used to test the model instead of improve its learning.
[10]:
n_data = 20_000
test_frac = 0.20
[11]:
input_data = np.column_stack(
[np.random.uniform(*ranges[k], n_data) for k in range(f.n_inputs)]
)
output_data = f(input_data)
dataset = RegressionDataset(input_data, output_data)
We also need some parameters to control the learning procedure: * the number of epochs * the batch size * the loss function * the learning rate * the optimizer * the learning rate scheduler
[12]:
# Epochs
epochs = 200
# Batch size
batch_size = 100
# Loss function
loss = nn.MSELoss()
# Optimizer
learning_rate = 1e-3
optimizer = optim.Adam(net.parameters(), learning_rate)
# Scheduler
gamma = (1e-2) ** (1 / epochs)
scheduler = optim.lr_scheduler.ExponentialLR(optimizer, gamma)
The next cell will launch the training procedure. It will modify the weights of the network in-place.
[13]:
learning_params = LearningParameters(loss, epochs, batch_size, optimizer, scheduler)
results = learning_procedure(
net,
dataset,
learning_params,
val_frac=test_frac,
)
print("Results keys:", list(results.keys()))
Epoch: 100%|██████████| 200/200 [01:09<00:00, 2.89it/s, train loss=1.6e-6, val loss=1.61e-6]
Results keys: ['train_loss', 'val_loss', 'train_metrics', 'val_metrics', 'train_set', 'val_set', 'lr', 'batch_size', 'duration']

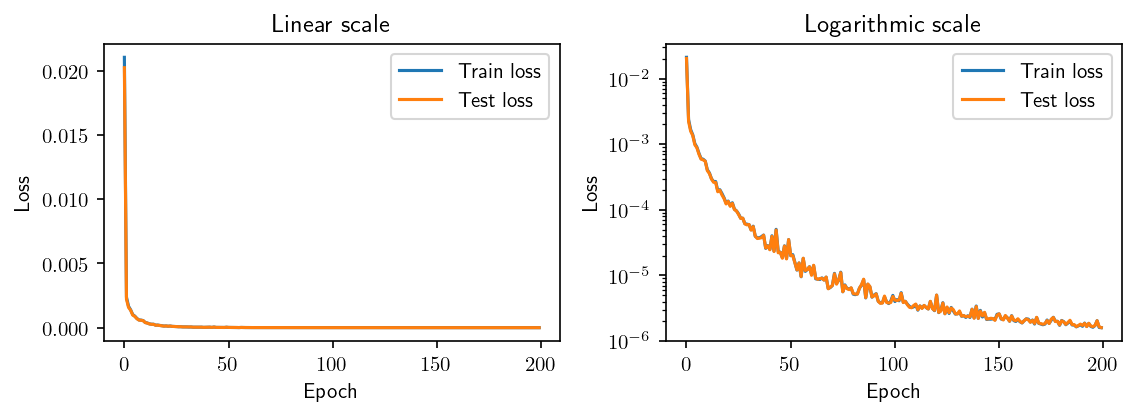

We can plot the evolution of both train and test loss:
[14]:
plt.figure(figsize=(1.2 * 6.4, 0.6 * 4.8), dpi=dpi)
#
plt.subplot(1, 2, 1)
plt.plot(results["train_loss"], label="Train loss")
plt.plot(results["val_loss"], label="Test loss")
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.title("Linear scale")
plt.legend()
#
plt.subplot(1, 2, 2)
plt.semilogy(results["train_loss"], label="Train loss")
plt.semilogy(results["val_loss"], label="Test loss")
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.title("Logarithmic scale")
plt.legend()
#
plt.tight_layout()
plt.show()

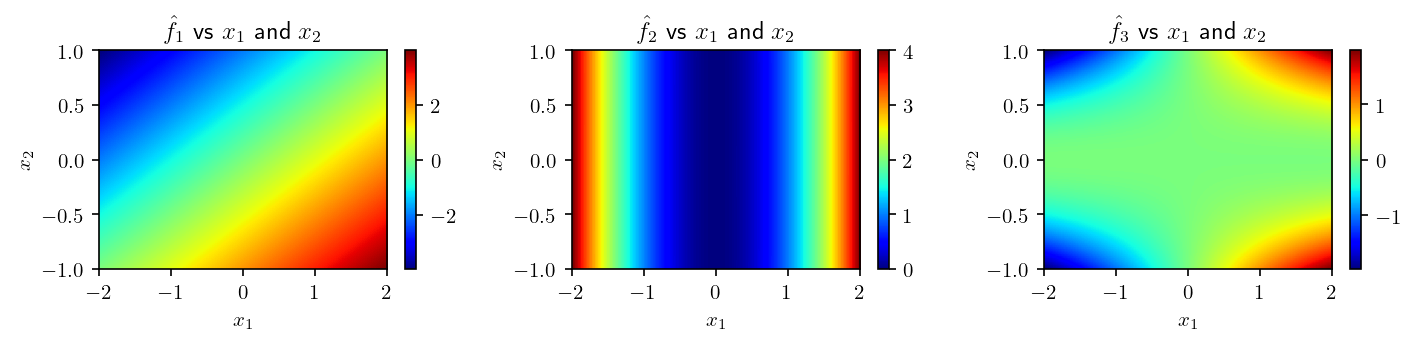

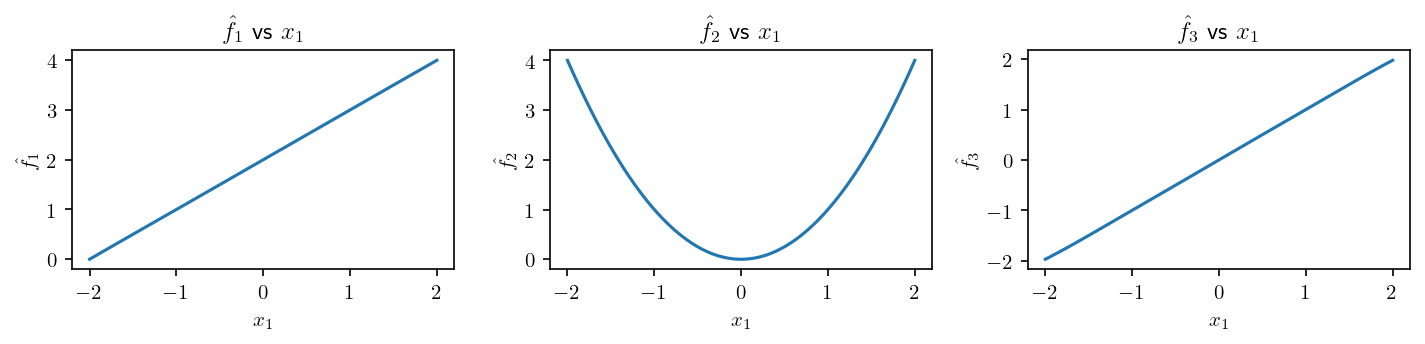

We now diplay the new plots with the trained network
[15]:
y_net = net(torch.from_numpy(x).float())
plt.figure(figsize=(0.5 * 6.4 * f.n_outputs, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
plt.subplot(1, f.n_outputs, j + 1)
plt.plot(x[:, input_to_plot - 1], y_net[:, j])
plt.xlabel(f"$x_{input_to_plot}$")
plt.ylabel(f"$\\hat{{f}}_{j+1}$")
plt.title(f"$\\hat{{f}}_{j+1}$ vs $x_{input_to_plot}$")
plt.tight_layout()
plt.show()
#
Y_net = net(torch.from_numpy(X).float())
plt.figure(figsize=(0.5 * 6.4 * f.n_outputs, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
plt.subplot(1, f.n_outputs, j + 1)
plt.imshow(
Y_net[..., j],
cmap="jet",
aspect="auto",
extent=[
ranges[inputs_to_plot[0] - 1][0],
ranges[inputs_to_plot[0] - 1][1],
ranges[inputs_to_plot[1] - 1][0],
ranges[inputs_to_plot[1] - 1][1],
],
)
plt.colorbar()
plt.xlabel(f"$x_{inputs_to_plot[0]}$")
plt.ylabel(f"$x_{inputs_to_plot[1]}$")
plt.title(
f"$\\hat{{f}}_{j+1}$ vs $x_{inputs_to_plot[0]}$ and $x_{inputs_to_plot[1]}$"
)
plt.tight_layout()
plt.show()

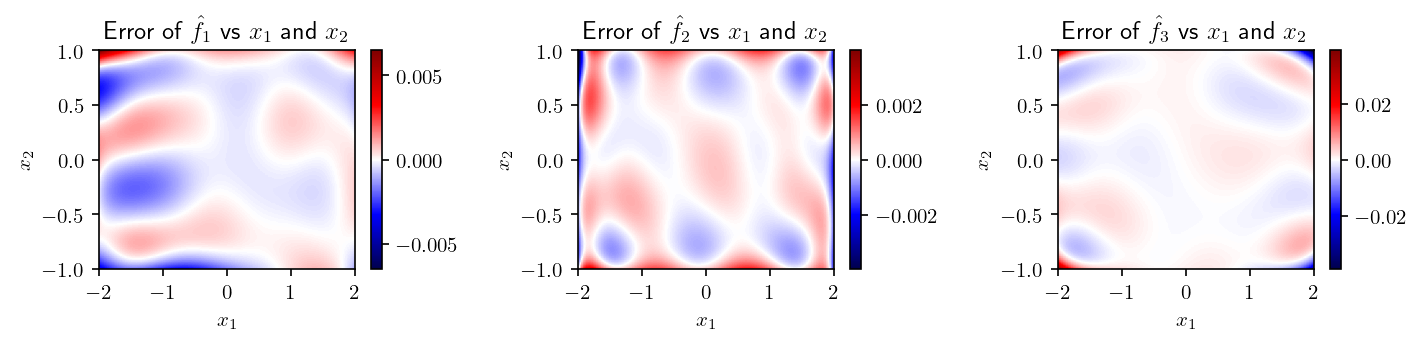

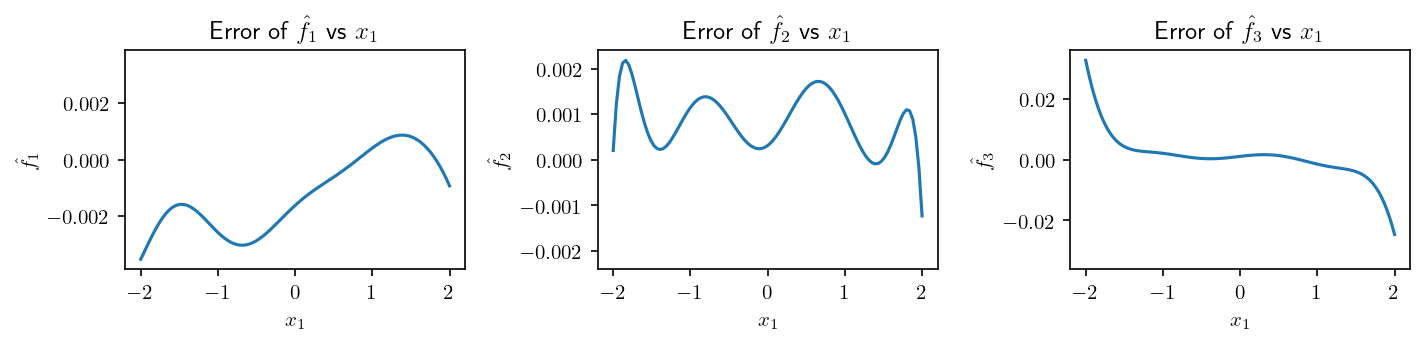

And the differences with the original function
[16]:
error_net = y_net - y
plt.figure(figsize=(0.5 * 6.4 * f.n_outputs, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
vmax = np.abs(error_net[:, j]).max()
plt.subplot(1, f.n_outputs, j + 1)
plt.plot(x[:, input_to_plot - 1], error_net[:, j])
plt.ylim([-1.1 * vmax, 1.1 * vmax])
plt.xlabel(f"$x_{input_to_plot}$")
plt.ylabel(f"$\\hat{{f}}_{j+1}$")
plt.title(f"Error of $\\hat{{f}}_{j+1}$ vs $x_{input_to_plot}$")
plt.tight_layout()
plt.show()
#
Error_net = Y_net - Y
plt.figure(figsize=(0.5 * 6.4 * f.n_outputs, 0.5 * 4.8), dpi=dpi)
for j in range(f.n_outputs):
vmax = np.abs(Error_net[..., j]).max()
plt.subplot(1, f.n_outputs, j + 1)
plt.imshow(
Error_net[..., j],
cmap="seismic",
aspect="auto",
extent=[
ranges[inputs_to_plot[0] - 1][0],
ranges[inputs_to_plot[0] - 1][1],
ranges[inputs_to_plot[1] - 1][0],
ranges[inputs_to_plot[1] - 1][1],
],
vmin=-vmax,
vmax=vmax,
)
plt.colorbar()
plt.xlabel(f"$x_{inputs_to_plot[0]}$")
plt.ylabel(f"$x_{inputs_to_plot[1]}$")
plt.title(
f"Error of $\\hat{{f}}_{j+1}$ vs $x_{inputs_to_plot[0]}$ and $x_{inputs_to_plot[1]}$"
)
plt.tight_layout()
plt.show()
Saving and loading the trained network
In this last part, we will show how to save and load a neural network.
[17]:
path = os.path.join(os.path.splitext(os.path.abspath(""))[0], "out-training")
net.save("network", path)
We can now load it:
[18]:
loaded_net = FullyConnected.load("network", path)
print(loaded_net)
FullyConnected:
layers_sizes: [2, 100, 100, 3]
activation: GELU(approximate='none')
batch_norm: False
inputs_names: None
outputs_names: None
inputs_transformer: None
outputs_transformer: None
device: cpu
last_restrictable: True
We can verify that the loaded network is doing the same operation than the one that have been trained:
[19]:
diff_max = np.max(
np.abs(
loaded_net(torch.from_numpy(x).float()).detach().numpy()
- net(torch.from_numpy(x).float()).detach().numpy()
)
)
print(f"Maximum difference of outputs between net and loaded_net: {diff_max:.2e}")
Maximum difference of outputs between net and loaded_net: 0.00e+00
